61% off

1/2dr Adjustable Torque Wrench

₱828.00 ₱2,099.00
By Arrow Hardware
Variation
  • Specifications:

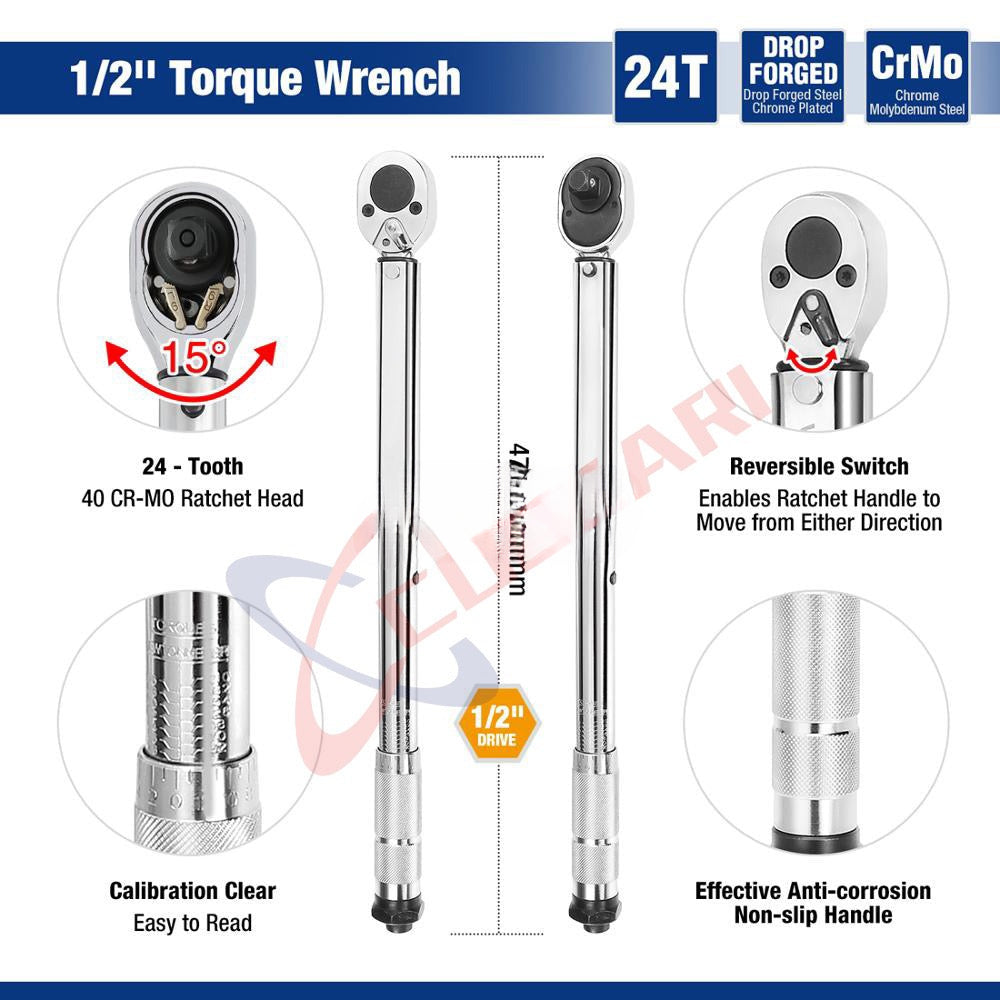

  • Torque Wrench 1/2"
  • Material: Nickel-chromium alloy steel
  • Surface Treatment: Mirror Finish

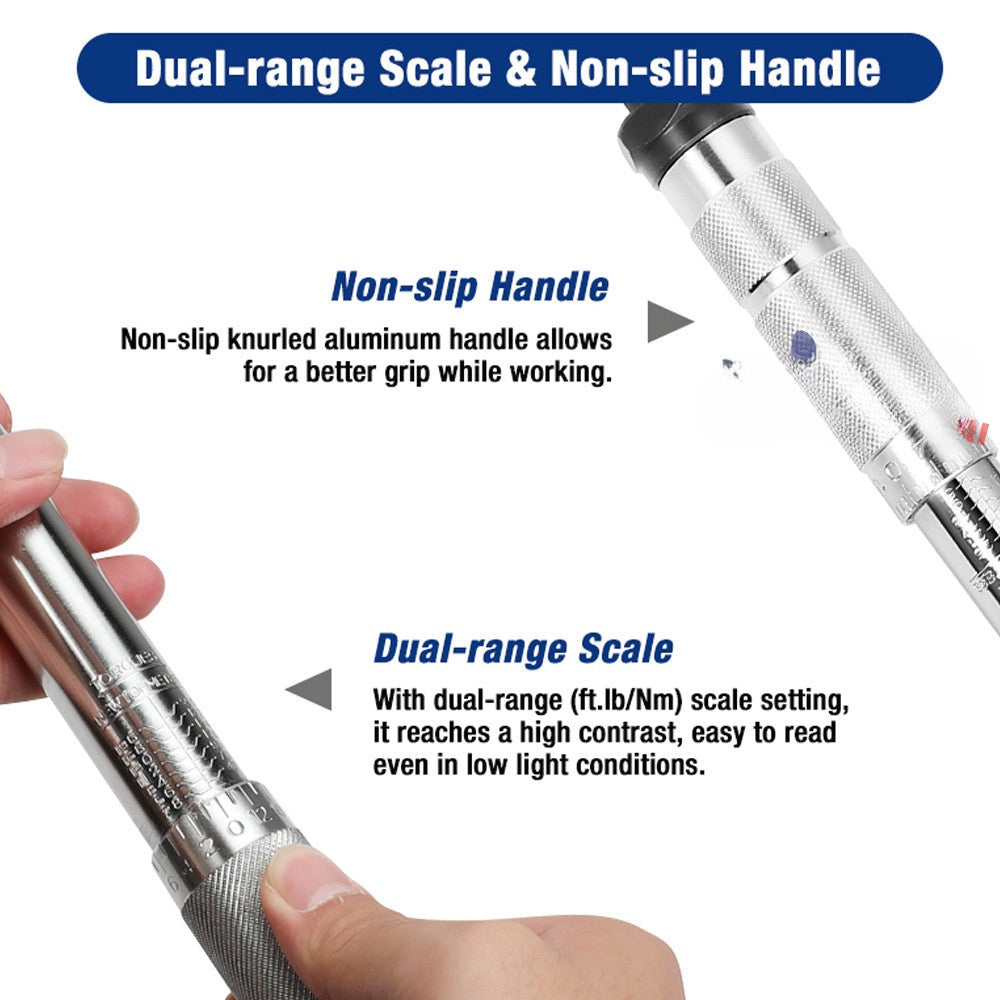

  • Knurling Handle: Anti-slip,Comfort grip
  • Attribute: 28-210Nm or 48-210N.m
  • Weight: about 1.7kg
  • Length: 470mm
  • Features:

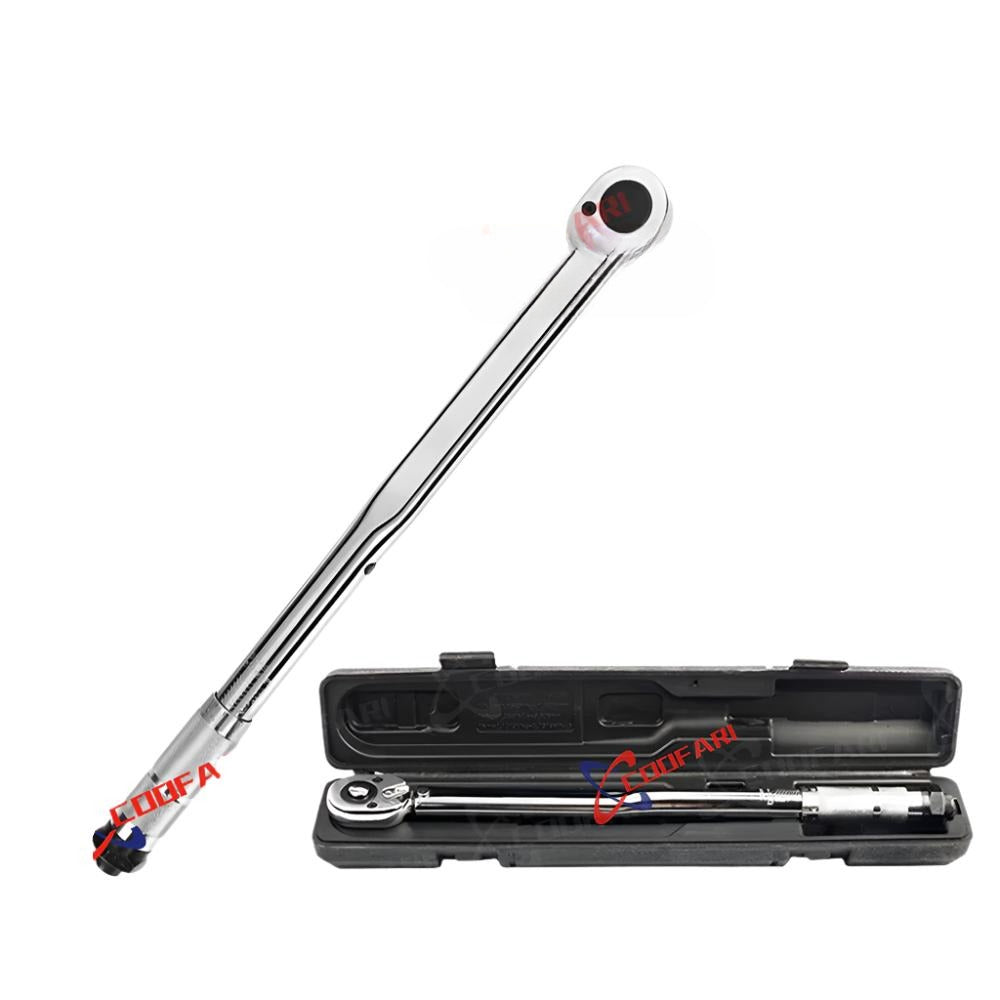

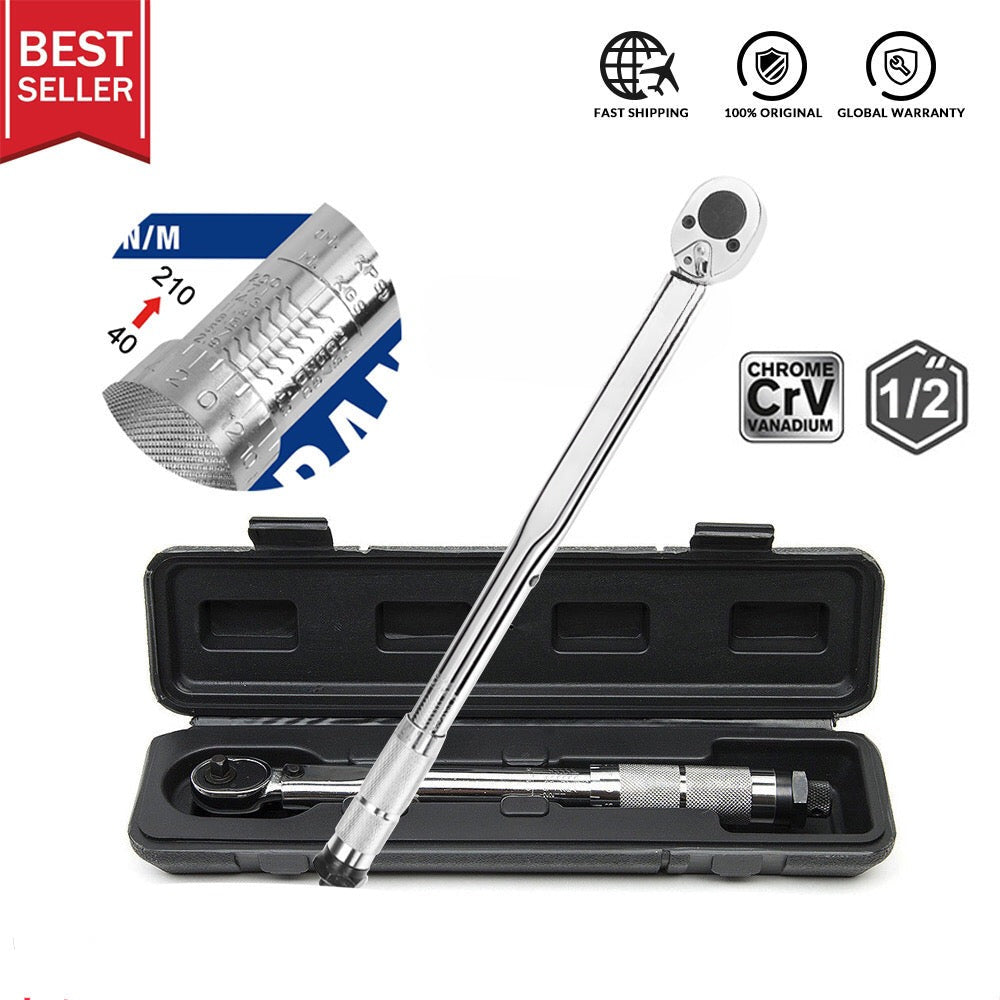

  • 1,Supplied in a blow molded case for easy storage and transportation
  • 2,Manufactured from chrome vanadium steel for strength and durability
  • 3,Every bolt on a modern vehicle has a torque setting, and a torque wrench is essential to accurately judge how tight a bolt is.
  • 4,Smooth action mechanism providing accurate torque settings every time
  • 5,Fully adjustable torque wrench with ratchet head which when set ensures proper tension and loading settings are applied to nuts and bolts.
  • 6,So ideal for small vehicles / bikes, etc
  • Conversion Tables:
  • 1FT-Lb=0.1383MKg=1.3556Nm
  • 1MK=7.233Ft-Lb=9.806Nm
  • 1Nm=0.1019MKg=0.73756Ft-Lb
  • How to Use:
  • A. Balancing wrench in hand with graduations visible with the marked arrow Elementary Scale up, then unlock
  • knurled handle by turning lock nut counter clockwise
  • B. Set amount of torque required bu turning knurled handled to read eaxact amount on case graduations.
  • Example:85Nm
  • 1.Turn knurled handle until the zero graduation on the bevel edge of the knurled handle is lined up with the vertical mark on the case and is even with the 82Nm graduate.
  • 2. Turn knurled handle clockwise until 3Nm graduation on the bevel edge of the handle is in line with the verrtical line on the case.
  • 3. Lock handle securely by turning lock nut clockwise, and now wrench is set at 85nm which is ready to use.
  • C. Install the proper socket or attachment to the square drive and apply to nut or bolt and pull handle until your feel and/or hear wrench click
  • Release pull and wrench automatically resets for next operation.
  • Don't continue to pull after wrench releases. Use special care at low torque settings that will pull stops when wrench clicks
  • Package Included:
  • 1 * Torque Wrench
  • 1 * Packing Box
  • 1 * English Instruction Manual
