2PCS/SETS 35mm Concealed Hinge Jig kit, Woodworking Tool Drill Bits, Hinge Drilling Hole Router Jig Hardware Template Guide Woodworking Tools for Face Frame Cabinet Cupboard Door Hinges
Couldn't load pickup availability
Type: Center Drill Bit
DIY Supplies: Woodworking
twist drill bit: screw extractor
countersink drill bit: step drill
drills: extractor the fish
Jig is an economical alternative to expensive drilling devices and confusing jigs.
Tool quickly locates drill center points for all brands of hinges and mounting plates.
Features a "V"-locator that works off of a center reference line.
Jig can be adjusted for changes in door edge to cup alignment.
Name: Hinged hole locator
Function: light and portable, easy to operate;sharp and durable, continuous knife,

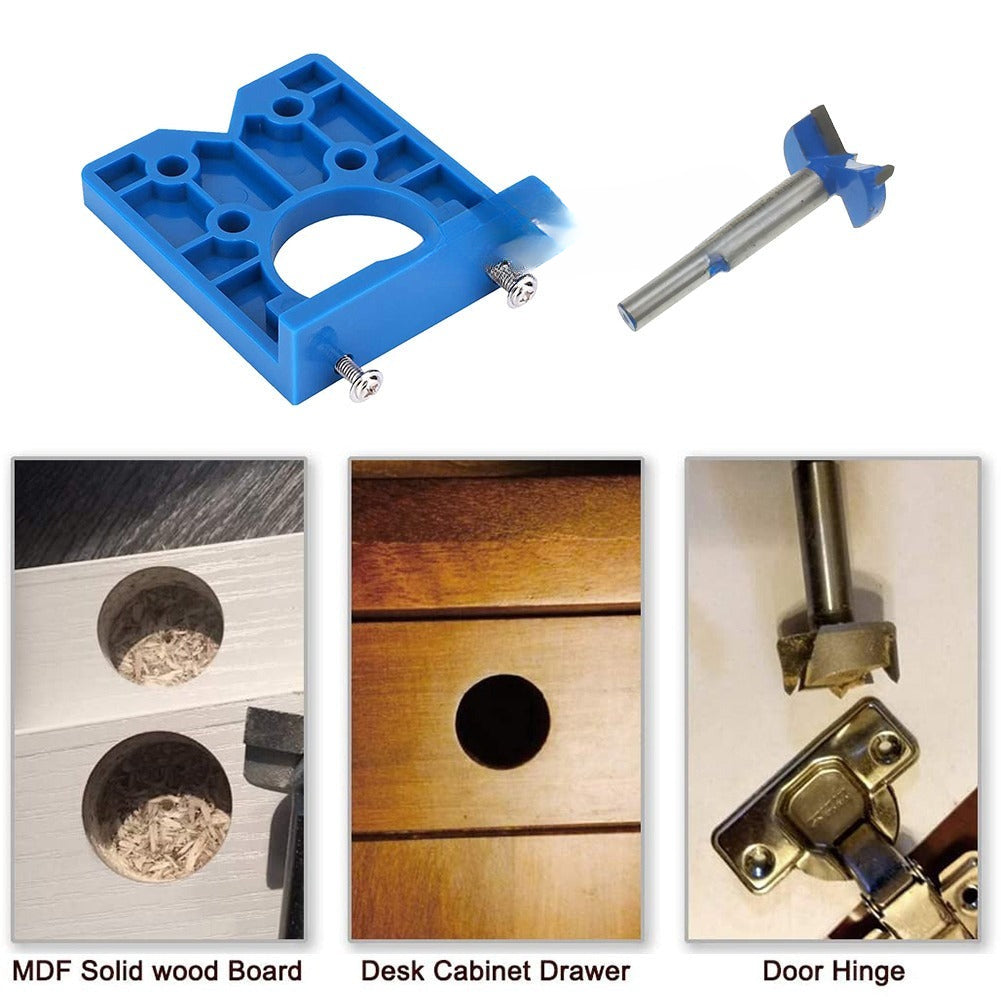

Suitable for positioning and installation of furniture door hinges

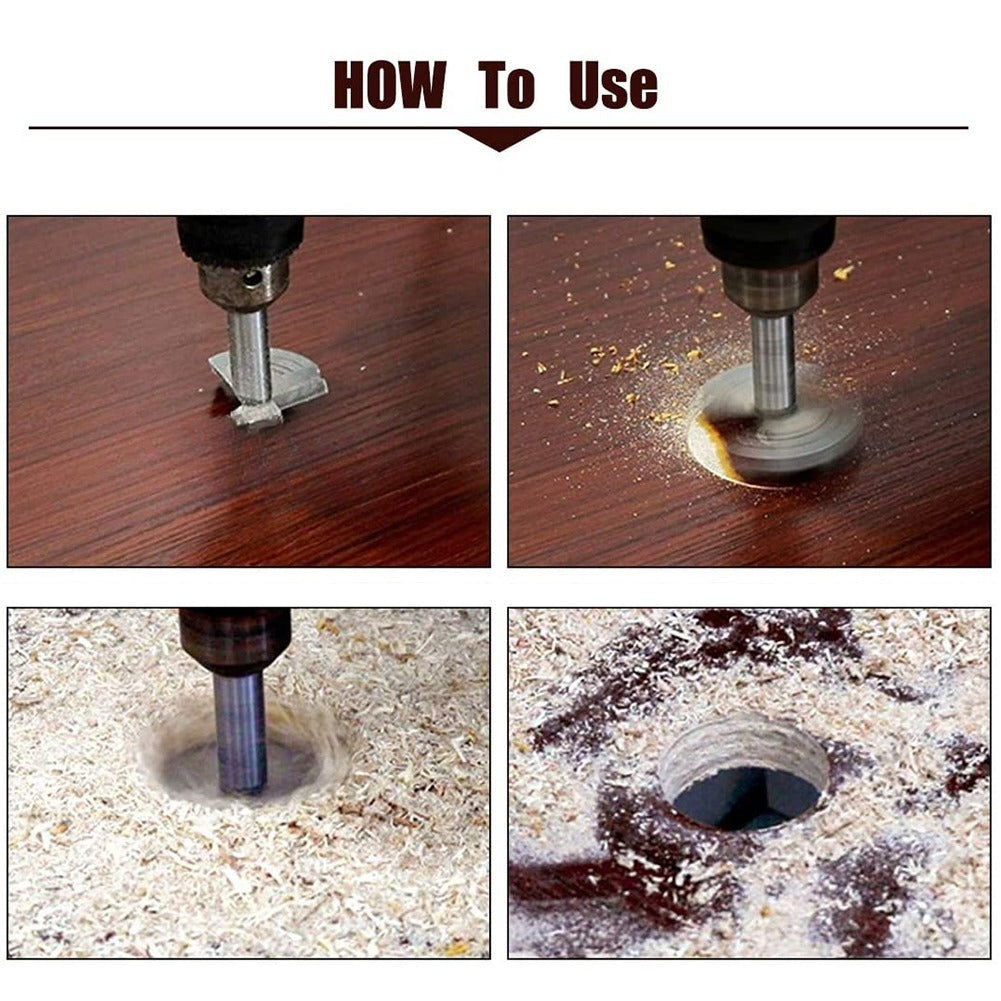

Instructions:

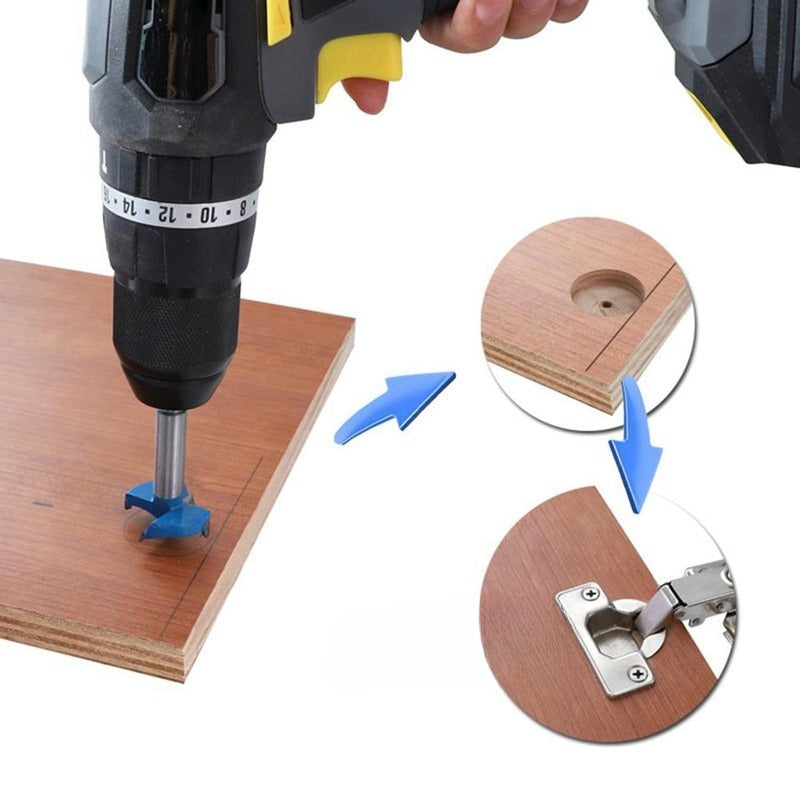

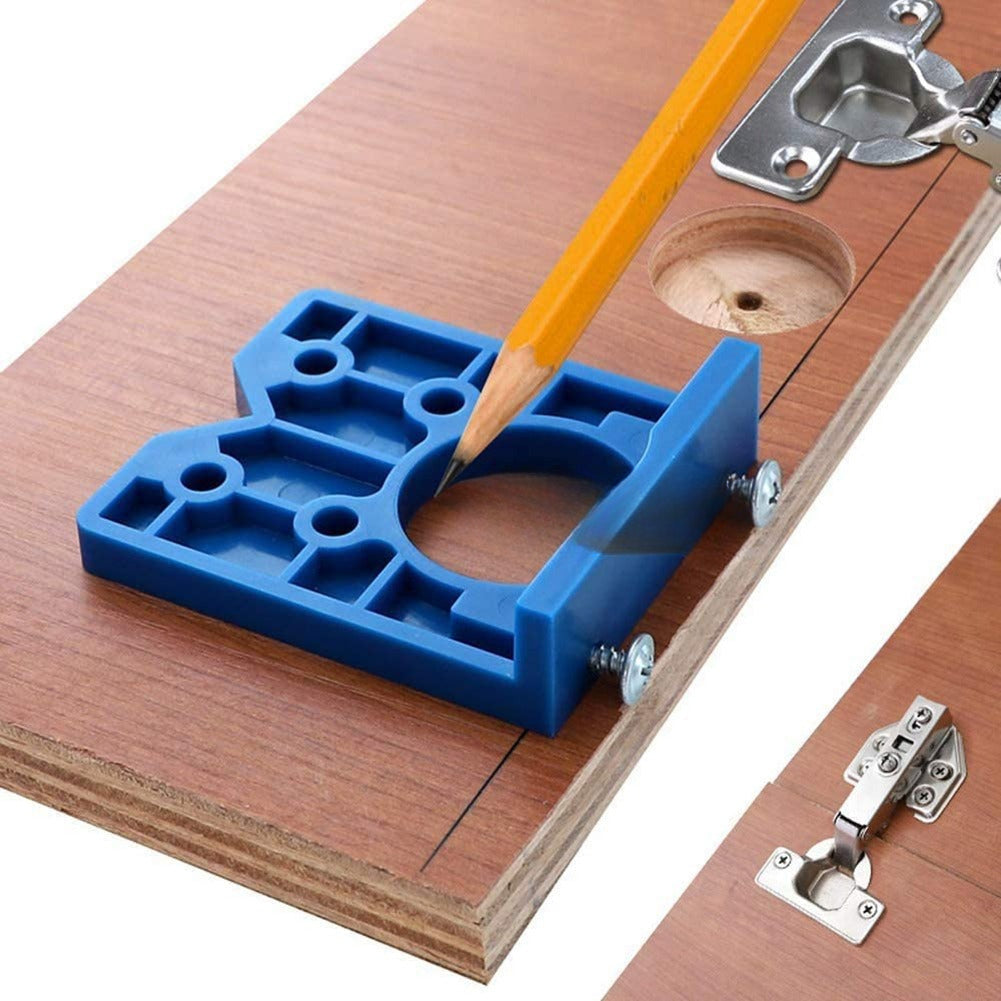

1. Determine the position of the hinge cup, the short plate is facing upward, the screw is fastened on the edge of the wooden board, and the hinge cup hole is drilled;

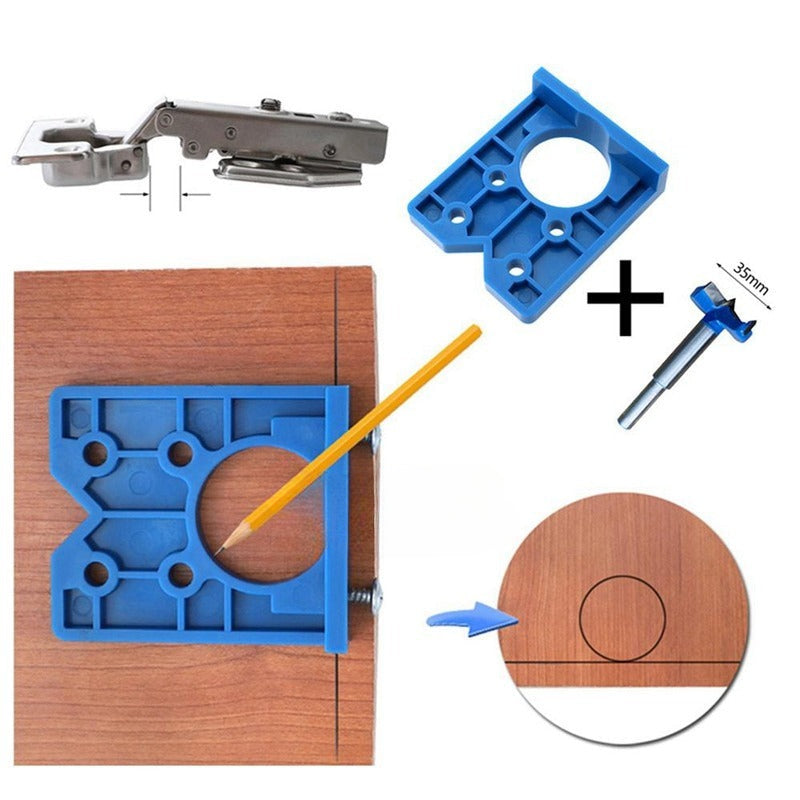

2. Draw a corresponding center line on the other board, the short board faces downward, the middle line is aligned with the inverted triangle, and the hinge positioning hole is drilled;
3. Install the hinges.
colour:blue
Material:ABS+ metal

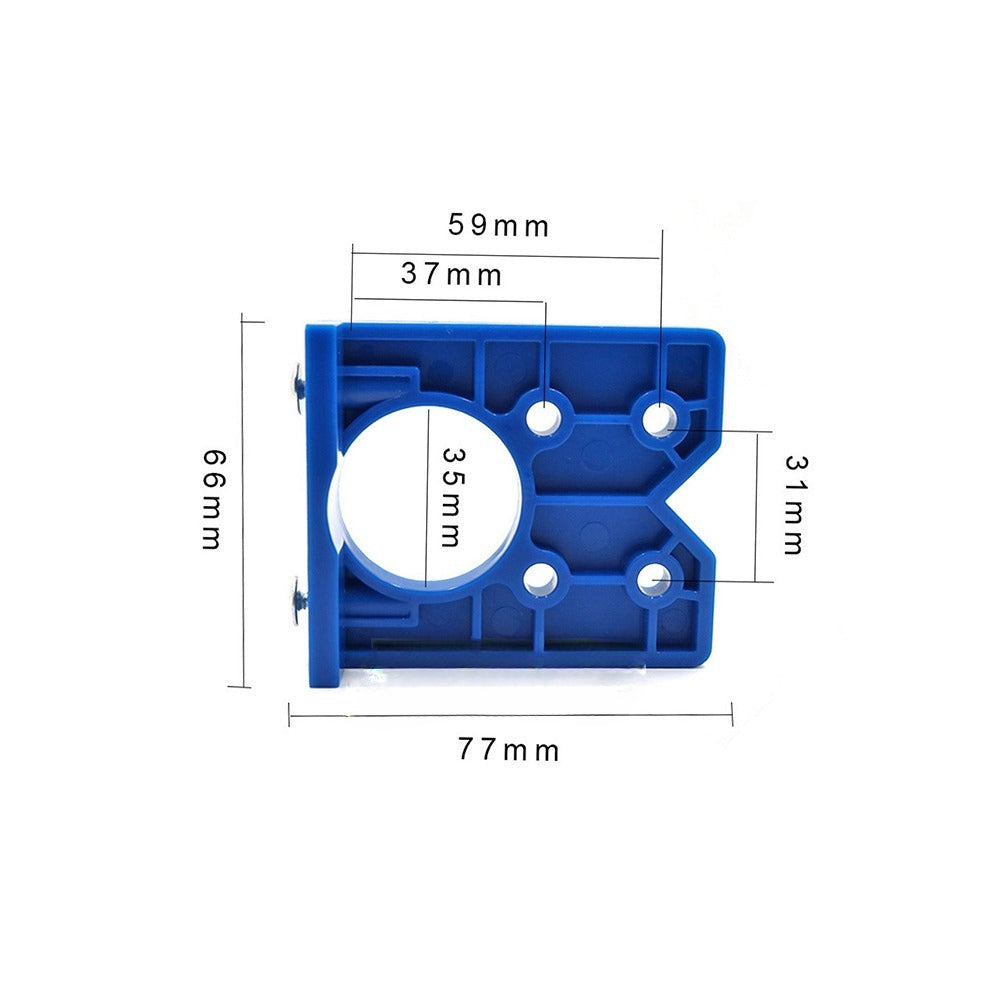

size:Hinge Locator: 77*66mm

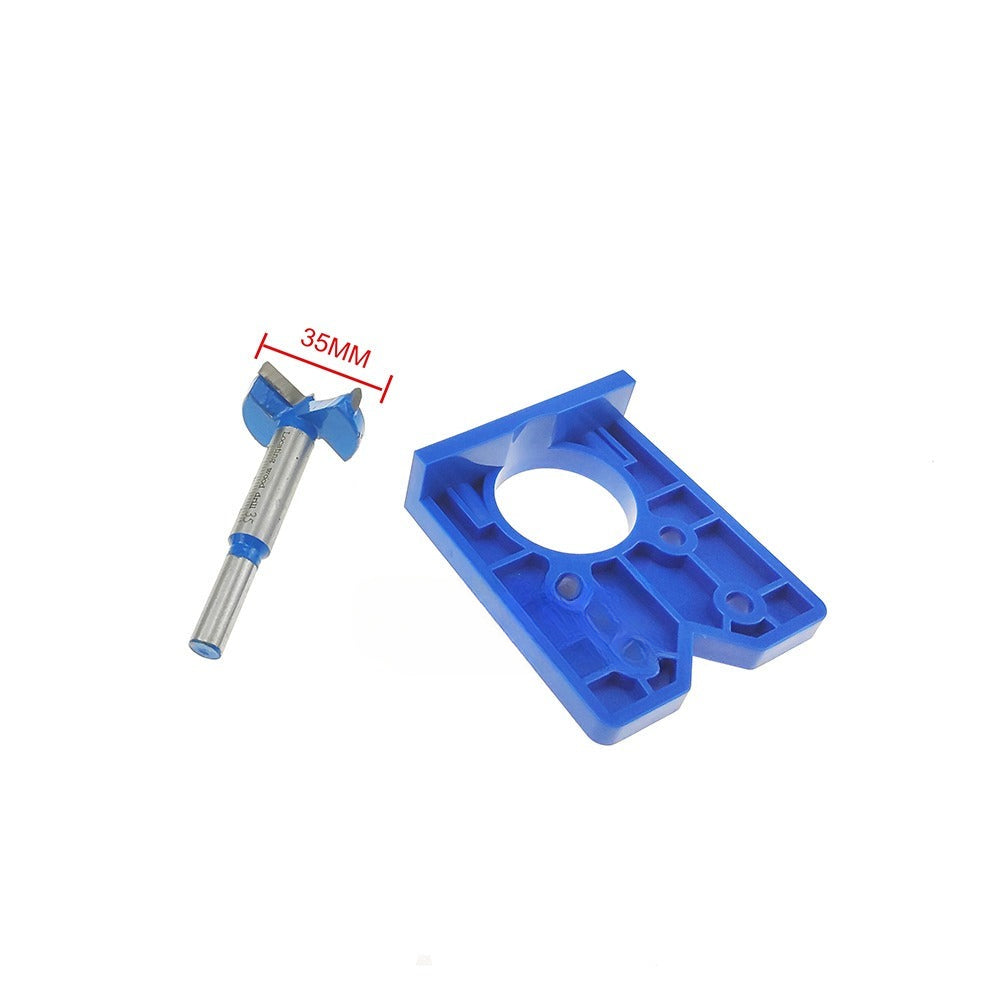

Hole opener: 35mm

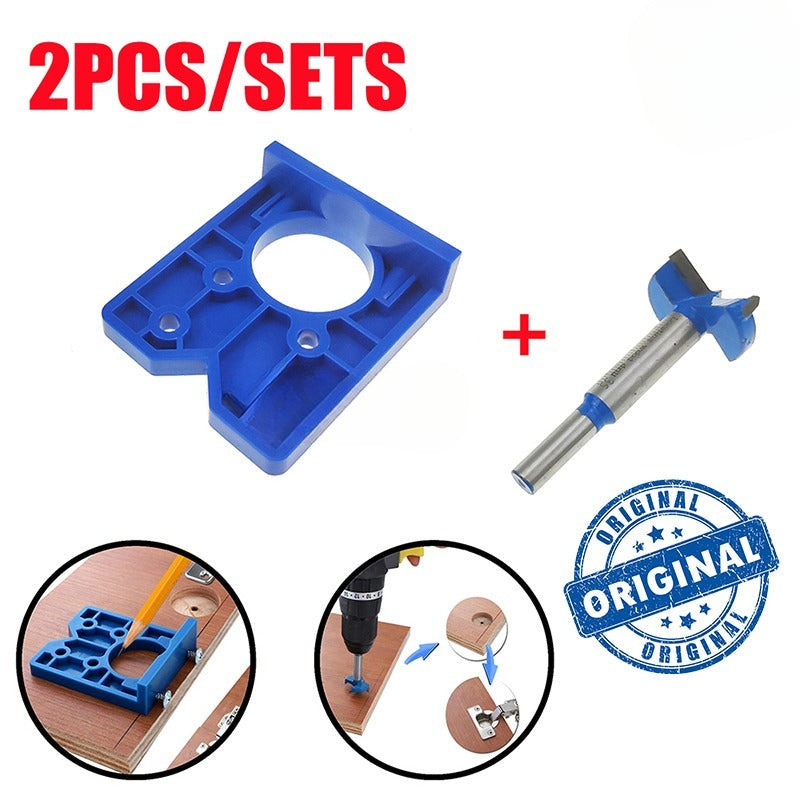

Package Contents:
1* hinge positioner
1* hole opener
