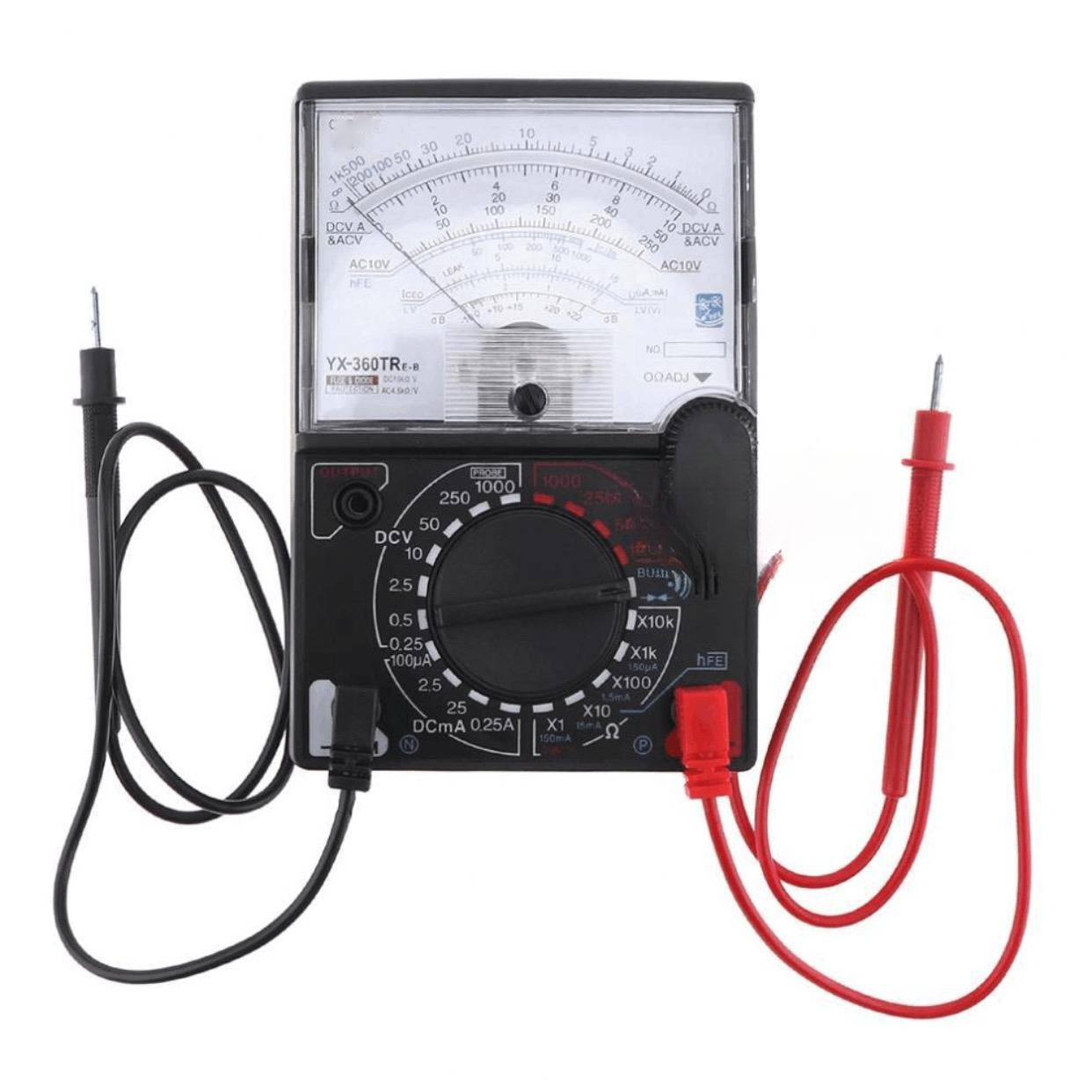

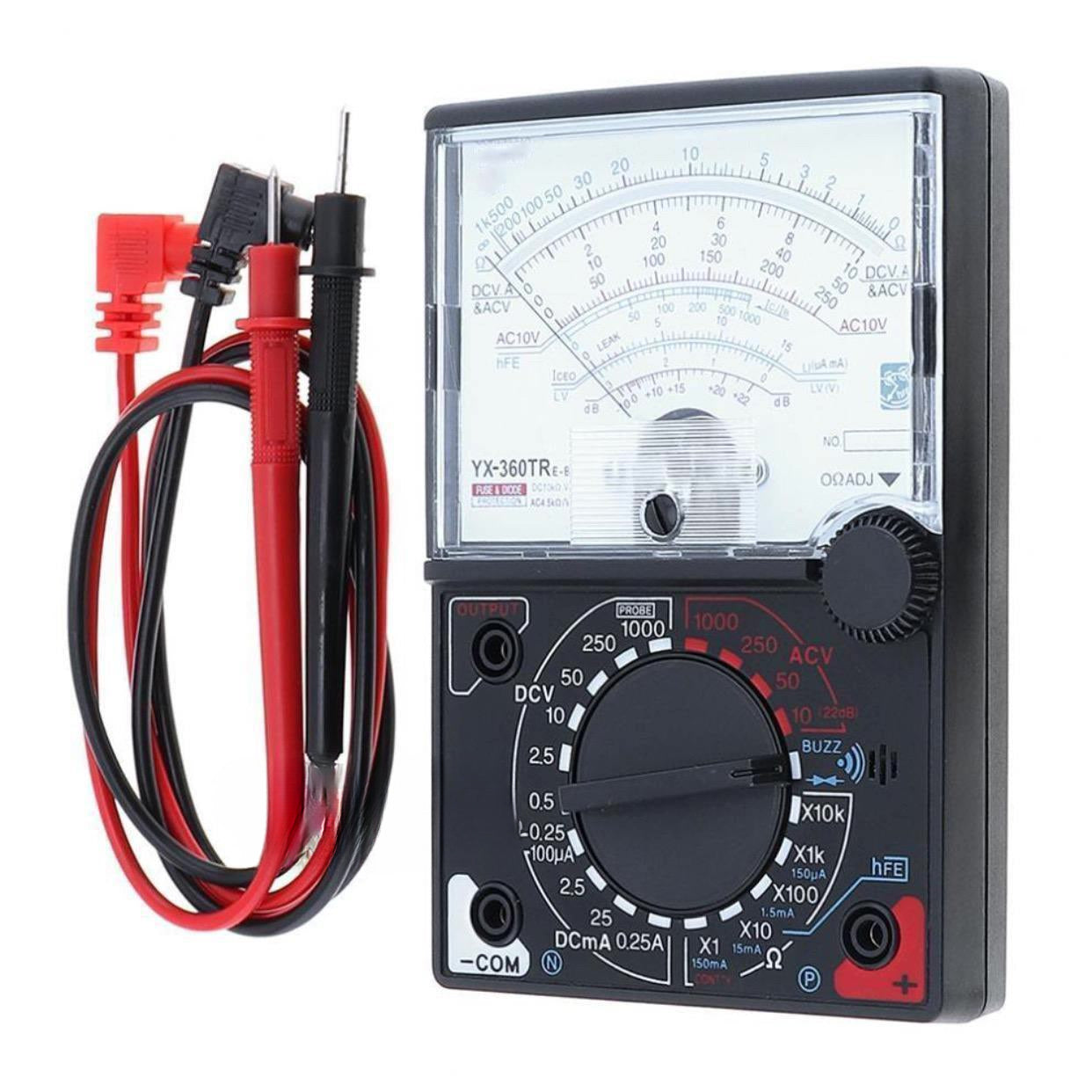

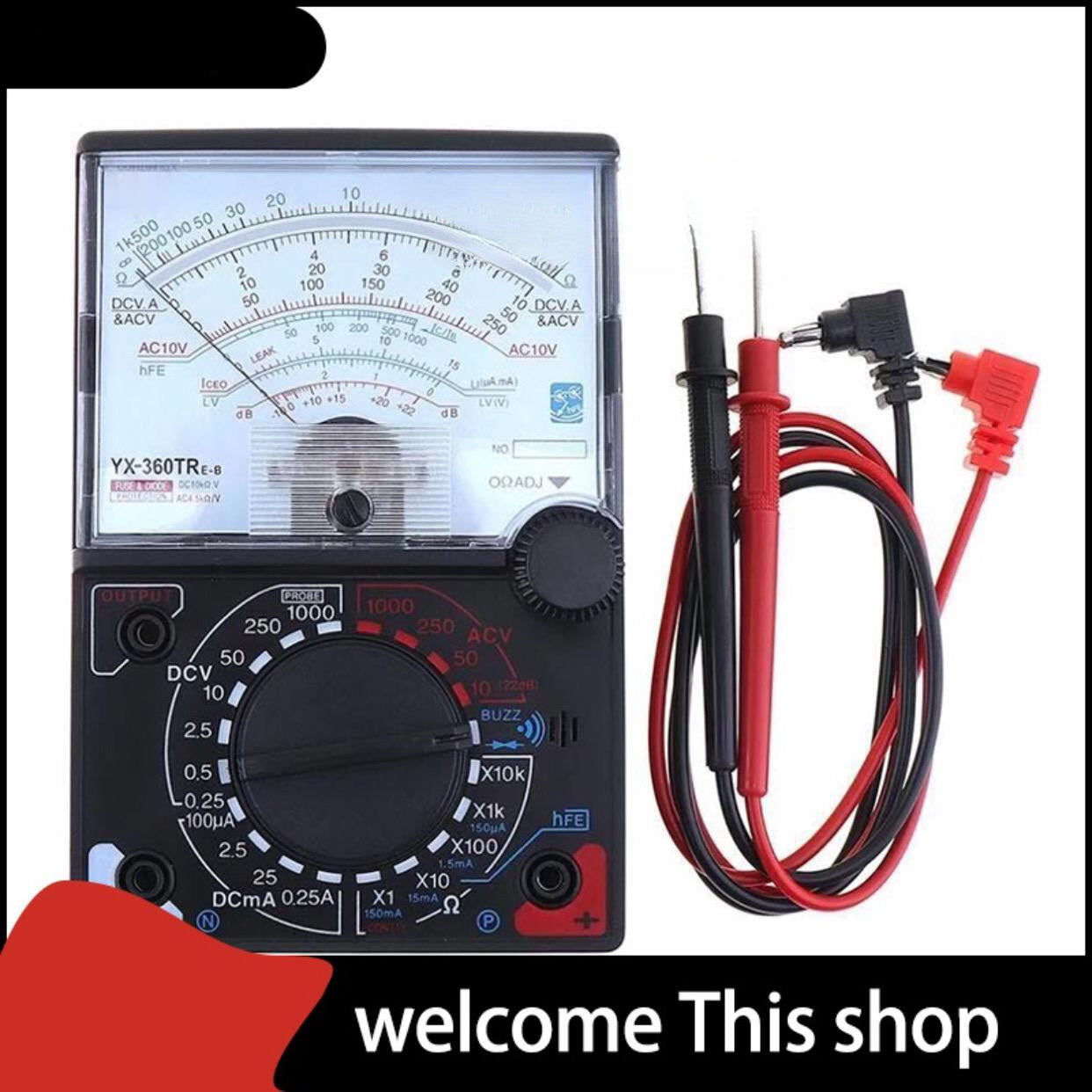

Multi Tester Sanwai YX-360TR Multi Meter Multimeter Multitester Analog

₱159.00 ₱399.00
By Arrow Hardware
  • Battery not included.
  • This instrument is portable mutitester designated for measurement of weak current circuits.
  • With one Pair Test Pen.
  • Overload protection circuit up to maximum 230V is provided.
  • Color: See Picture
  • DCV: 0.25 / 2.5 / 10 / 50 / 250 / 1000V
  • ACV: 10 / 50 / 250 / 100V
  • DCA: 0 - 0.5 - 50 - 500mA
  • Ohm Meter: X1 / x10 / x100 / x1K(2k /20k2M)
  • Decibels: -10dB to + 22dB (for 10VAC)
  • Intermal battery: 9V x 1 + 1.5V x 2（No Include）
  • OPERATION TEST:
  • Plug the test leads into COM and + sockets.
  • Place the range selector to a prescribed range position.
  • Short the test leads and turn 0A DJ to set the poin-ter to zero position.
  • Make sure that there is no voltagea crossthe circuit to be tested.
  • Connect the test leads to the tested resistor and read the scale in accordance with the reference table.
  • CONTINUITY TEST (BUZZ) Set the range selector knob to BUZZ,apply the test lead pins to two points to be tested and test continuity.Then the buzzer will buzz at between 0 and about 120 .It is impossible to
  • test a point where voltage is being applied.
  • CONTINUITY TEST (LED). Set the range selectot to the"CONT'Y" position.Connect thetest leads to the tested circuit if the"LED" in the tester produce light ，that mean the tested circuit is continuous.
  • Battery not included.
  • SURFACE MOUNT TECHNOLOGY.
  • POLARITY SWITCH FUNCTION.
  • 10A DC CURRENT MEASUREMENTS.
  • FUSE AND DIODE PROTECTION
  • Analog Multimeter with Mirror Scale Inbuilt Buzzer and LED 0 Ω Adjustment with X 100 Range Transistors Test , hFE with Diode.
  • Test Resistance Range : X1 , X10 , X100 , X1K , X10K
  • Special Functions : Diode Test Transistor
  • Testing Continuity Buzzer About 100 Ω Function Protection Iceo : 150µA - 15mA - 150mA
  • Model :YX-360TR
  • BType of ProductAnalog MultimeterAC Voltage (Volts)10-1000 VAC Voltage Accuracy±4%DC Voltage (Volts)0.1mV-1000 VDC Voltage Accuracy±3%DC Current (Amp)50µA-10 ADC Current

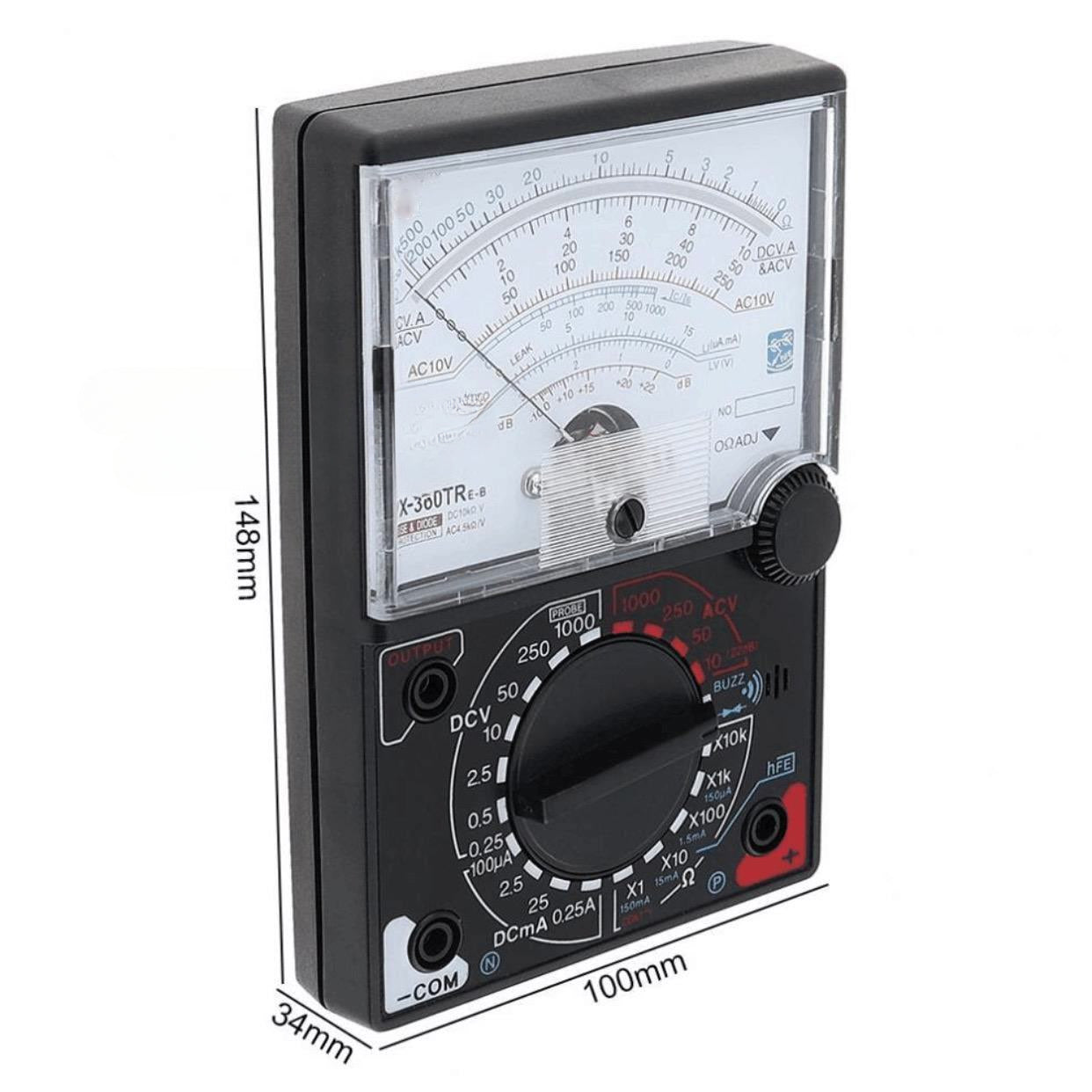

  • Accuracy±3%Resistance (Ohm)0.2 Ω-20 MΩResistance Accuracy±3%hFE ( TR Amplification factor)0-1000Size (mm)148x100x35 mmIncludesTest Leads,
  • Package include
  • 1 x Multimeter
  • 1 x Manual

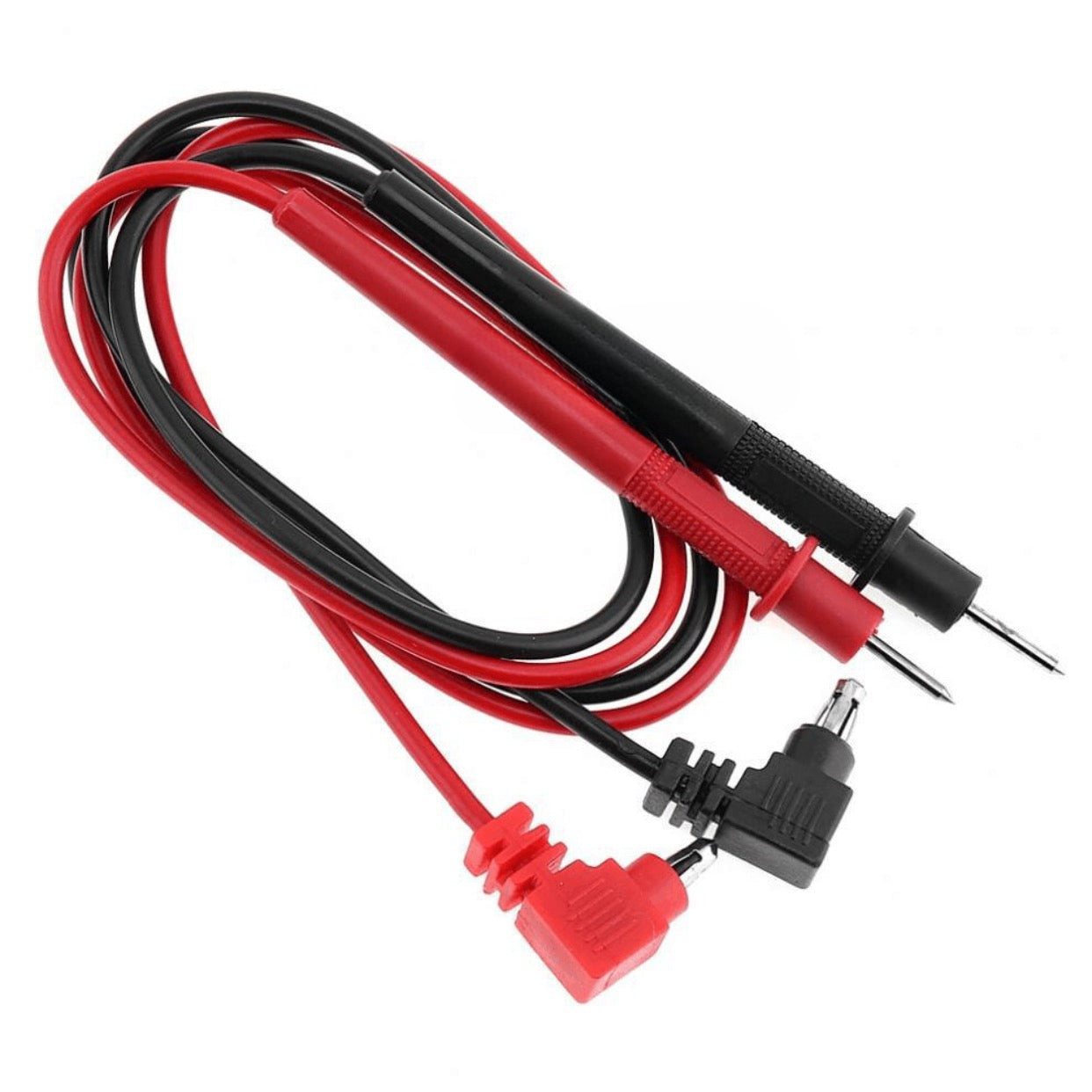

  • 1 Pair Test Pen
