Product Details
-
Applications:
-
Ip-phone
-
Wireless access point and client devices
-
Security Camera System
-
Specifications:
-

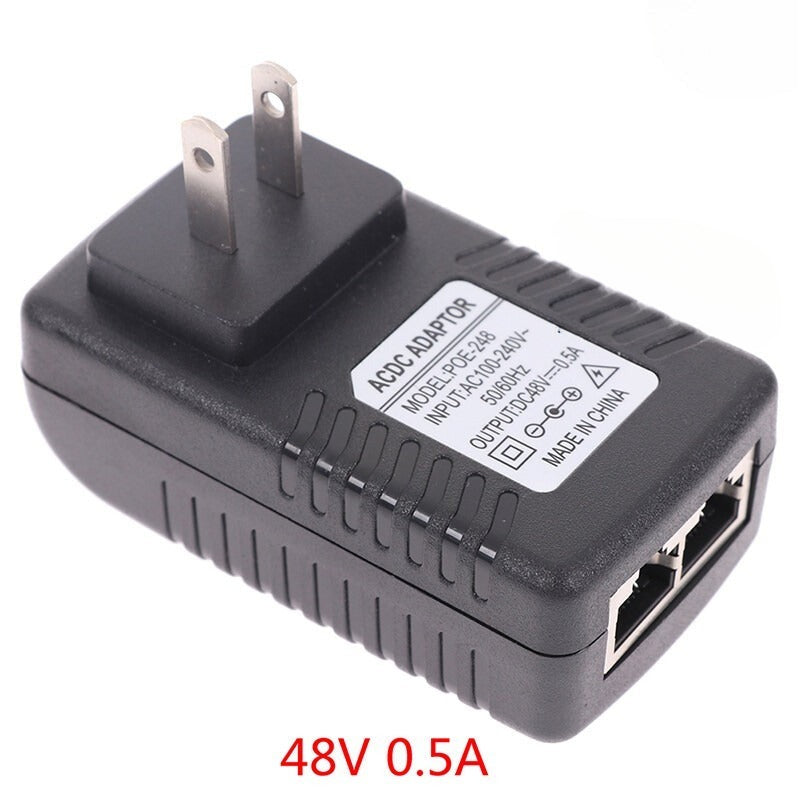

Output: 48 V DC 500ma-please do not order if your device requires more than 500 mg
-
Input: 100-240 V 50/60 Hz
-

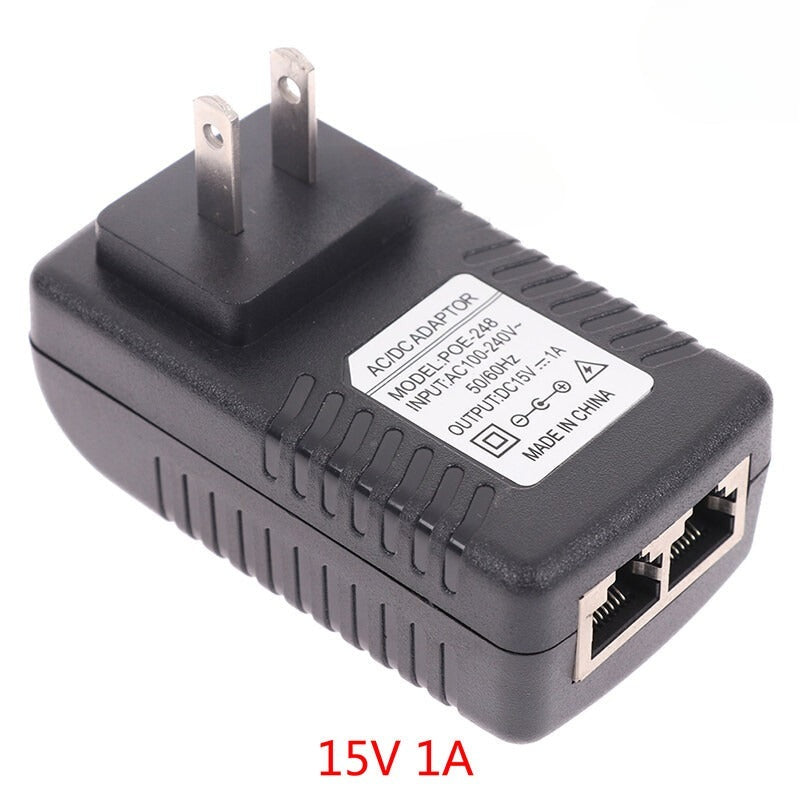

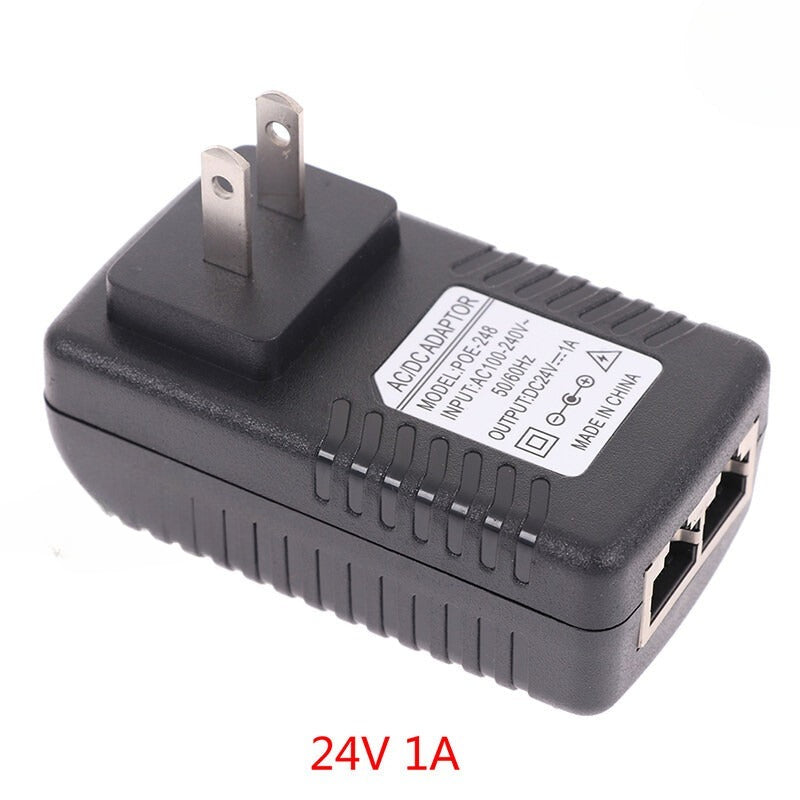

Yield: 12V 2A/15V 1A/24V 1A/48V 0.5A
-
Input current: 0.5A/1A
-
Efficiency: 80% min
-
Line / load control: 3% / 5%
-
Rotational speed / noise: 200mv p-p
-
Rotation delay: 2 seconds max
-
Lifting time: 40 MS max
-
Protection: automatic recovery of over-voltage, short-circuit, more current
-
Operating temperature: -10 to + 40 ° c (14 to + 104 ° F)
-
Operating Humidity (RH): 5% -90%
-
Storage temperature: -20 to + 85 ° c (-4 to + 185 ° f)
-

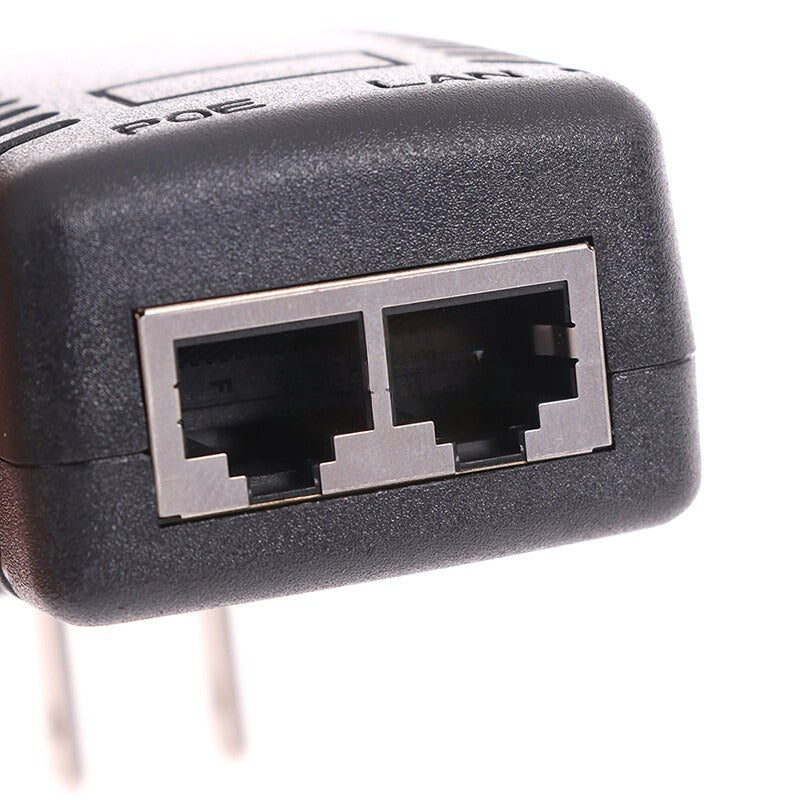

Network connector type: RJ45 shielded
-
POE type: Passive PoE (pins 4.5 V +, pins 7.8 V-)
-
• Provides remote power for equipment via cat 5 Ethernet cables up to 100 m
-
• Autoranging power switching 100 ~ 240V AC
-
• Short circuit, overcurrent and voltage protection
-
• Reliable 24 W Passive PoE output
-
• Compact, portable size with a comfortable design on the wall
-
Package included: 1 pc us power injector
