67% off

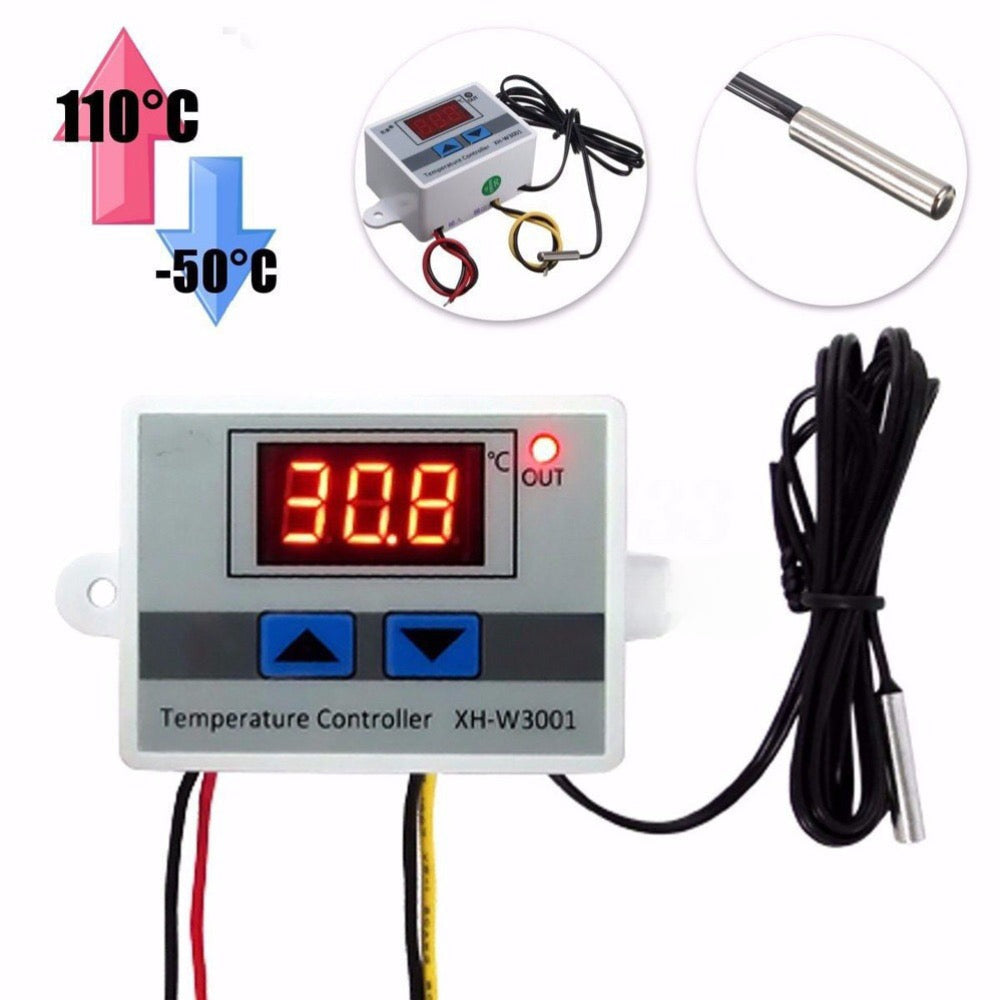

XH-W3001 Multifunction Digital Temperature Controller DC12/24V AC110-220V Thermostat Control Switch

₱85.00 ₱259.00
By Arrow Hardware
Variation
  • Features:
  • automatic mode
  • Wide temperature control range
  • High temperature control accuracy
  • reverse connection protection
  • easy installation
  • Product parameters:
  • Product name: Microcomputer temperature controller
  • Product Model: XH-W3001

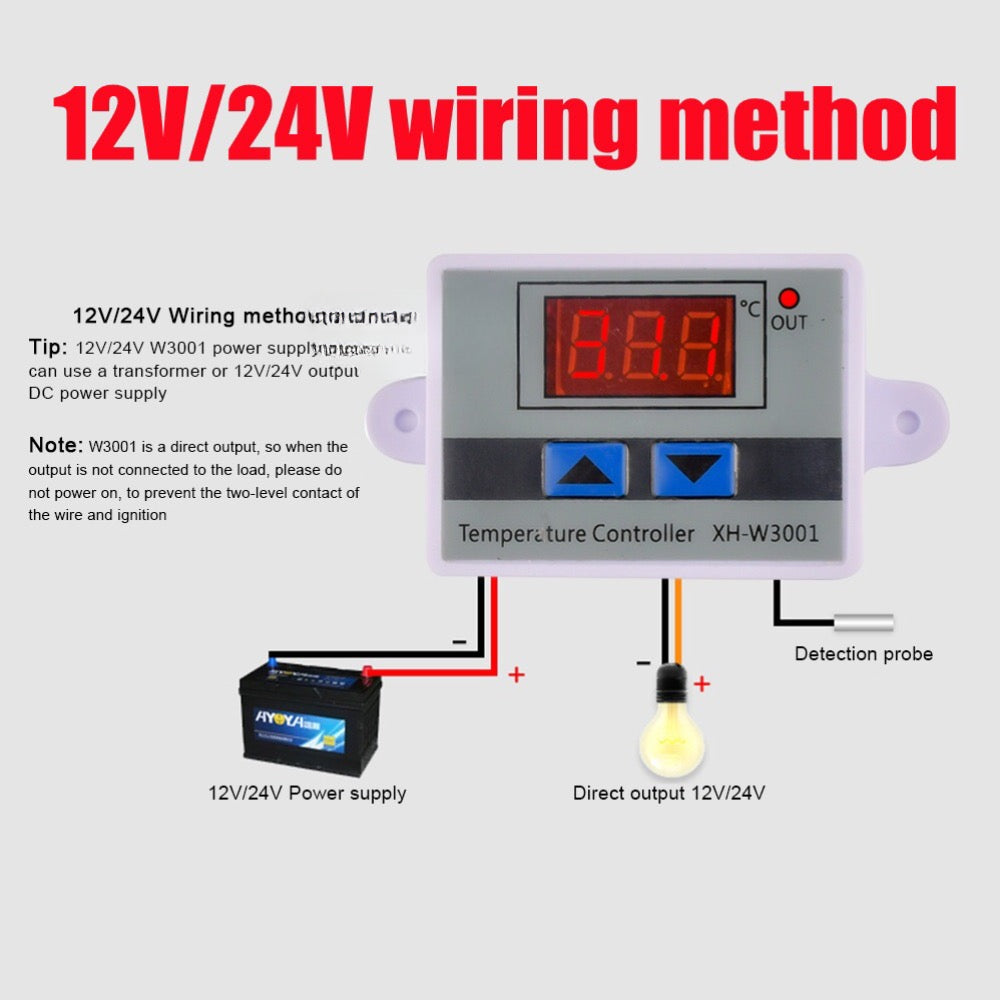

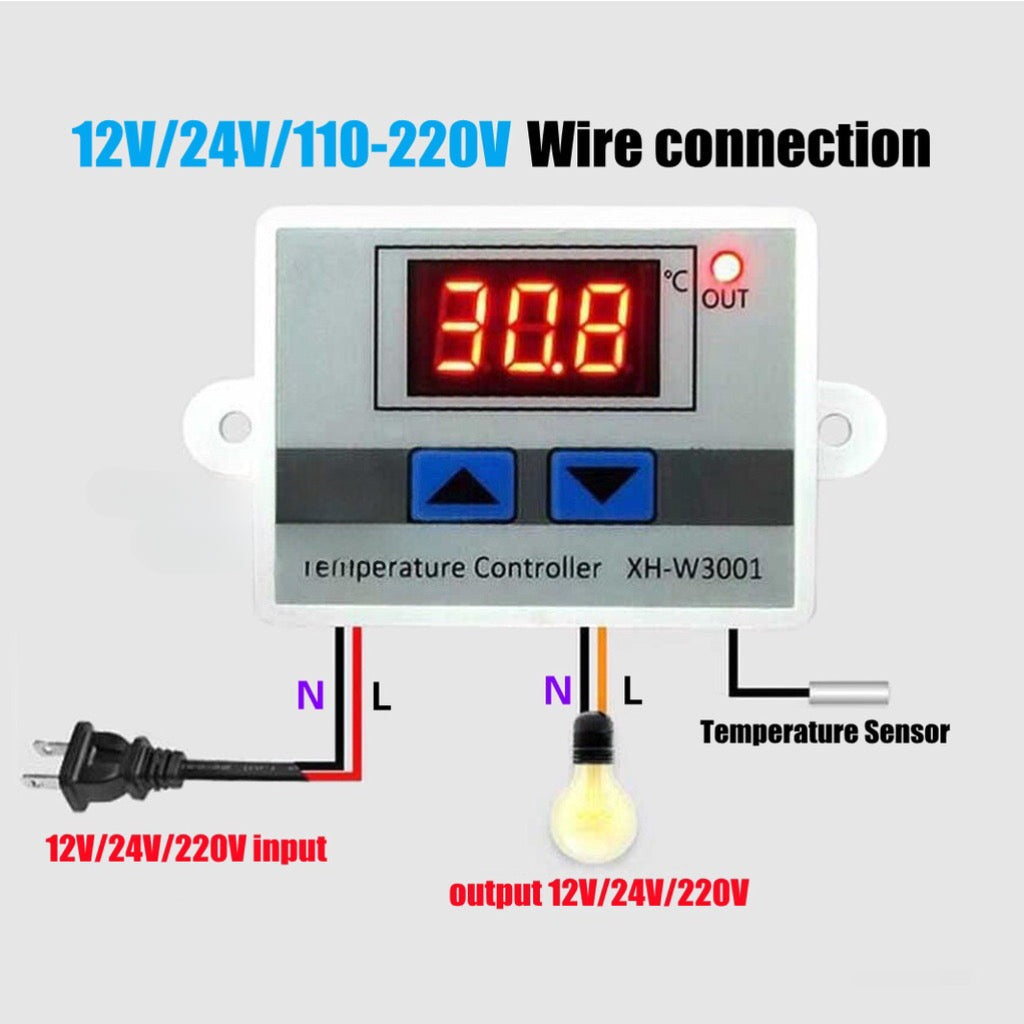

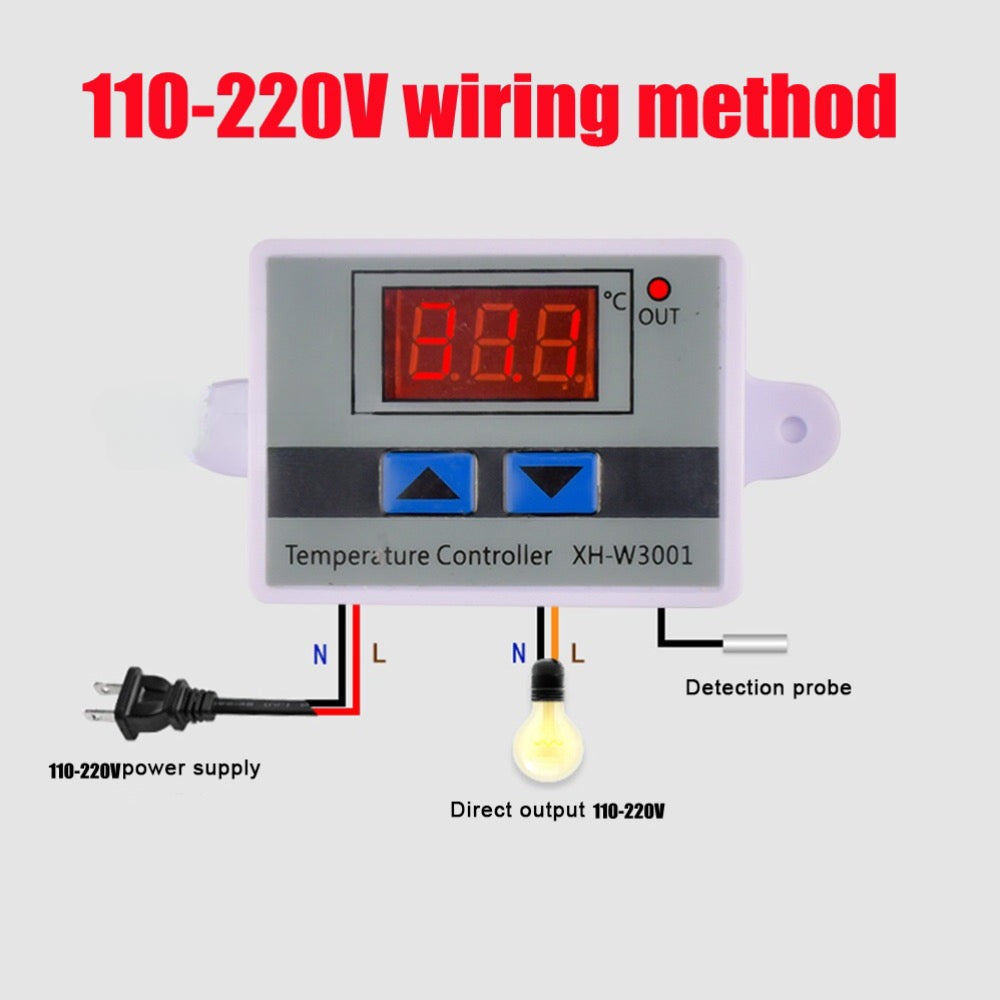

  • Supply voltage: 12/24/220V
  • Temperature measurement range: -50℃~110℃
  • Temperature control range: -50℃~110℃
  • Temperature control accuracy: 0.1℃
  • Load power: 120/240/1500W

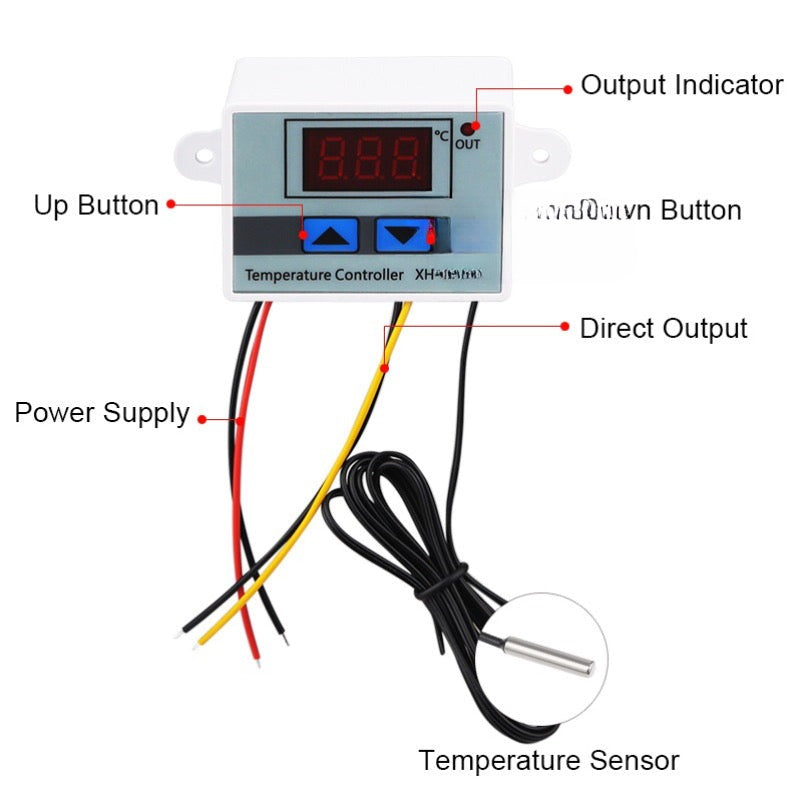

  • Measurement input: NTC10K waterproof probe L=1 meter
  • output type: direct output
  • Output capacity: max 10A
  • Installation hole distance: 73mm (diameter 4mm)
  • Appearance size: 60*45*31mm

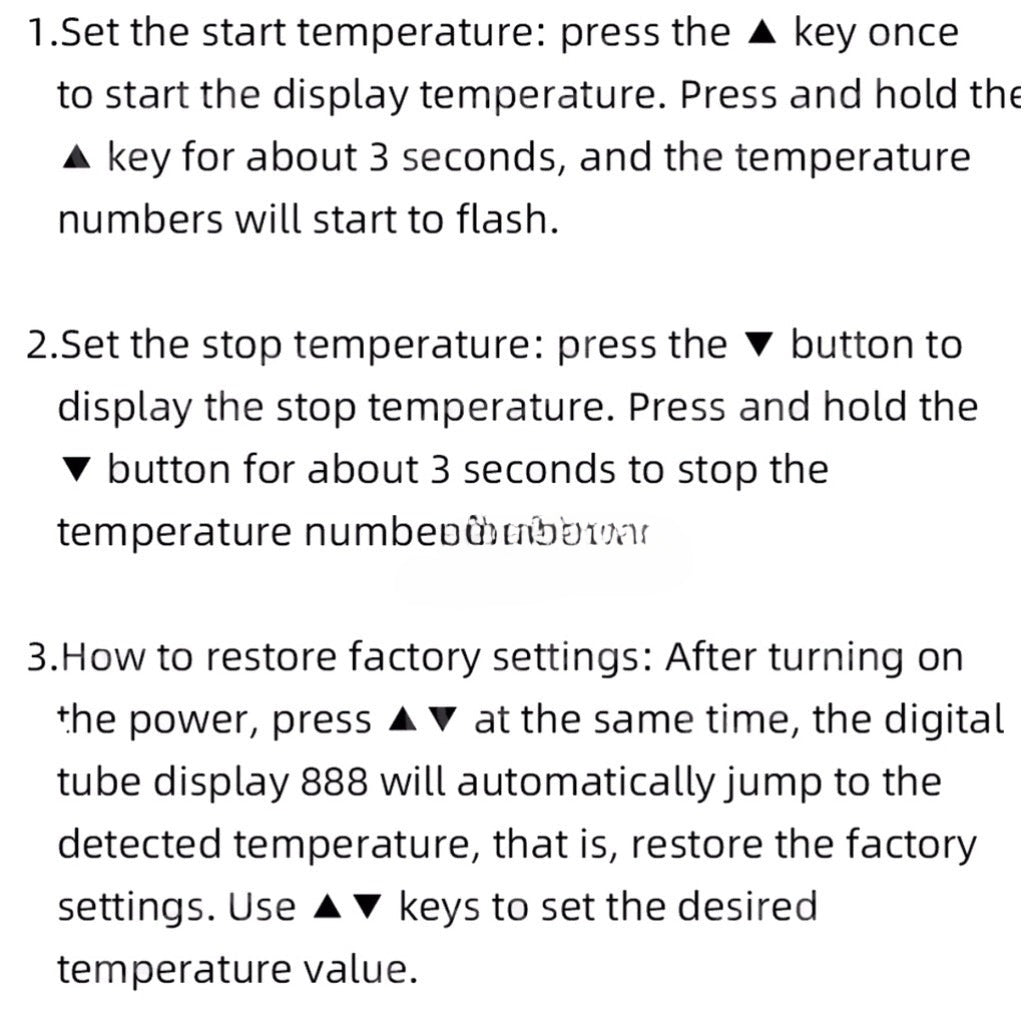

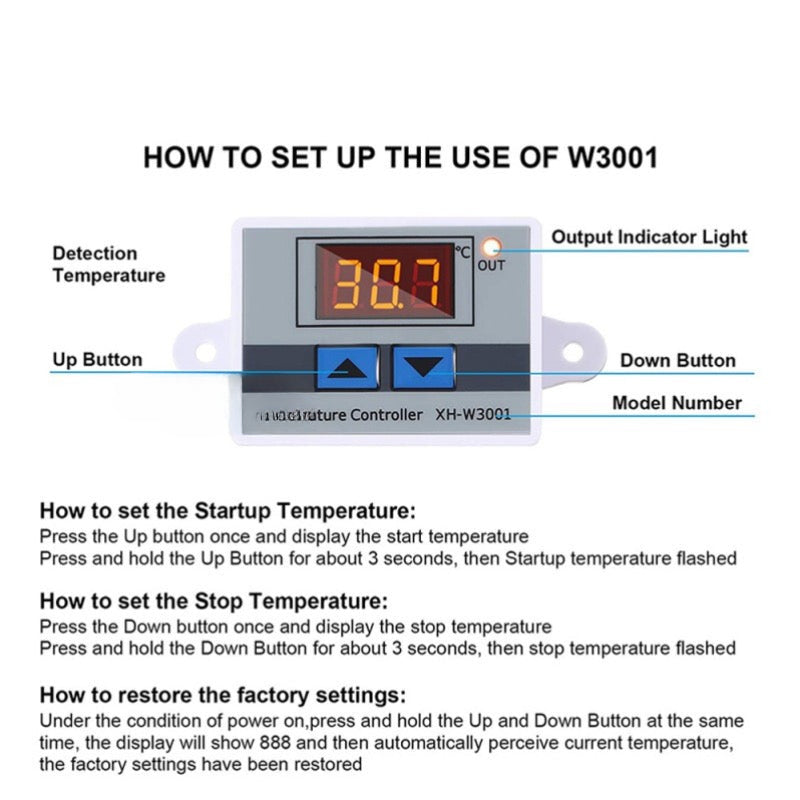

  • Instructions:
  • To set the startup temperature:
  • Press the up button once to display the startup temperature, press and hold the up button for about 3 seconds,
  • the startup temperature number will flash, and the desired temperature value can be set by the up and down
  • buttons
  • Set stop temperature:
  • Press the down button once to display the stop temperature, long press the button for about 3 seconds, the stop temperature number will flash, and the desired temperature value can be set by the up and down buttons

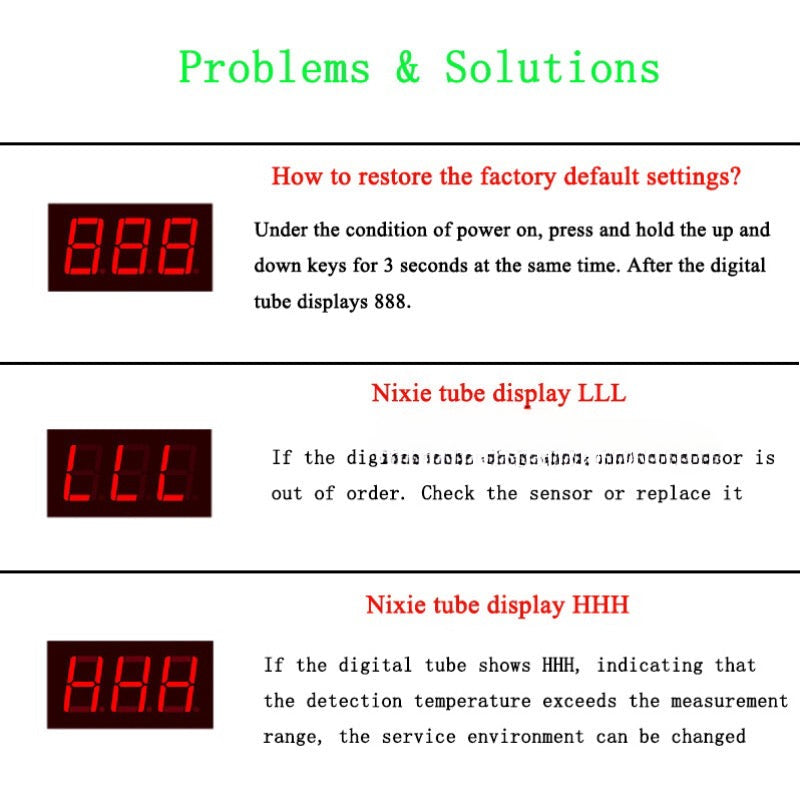

  • reset:
  • When the power is on, press and hold the up and down keys at the same time, the digital tube displays 888 and then automatically jumps to the detection temperature, that is, restores the factory settings
  • Shipping list:
  • 1 X Digital Thermostat
